Manufacturer : Magnetic Products Inc.



MPI’s Round Spout Drawer Magnets (RSDM) are designed to remove medium and small size ferrous tramp metal contaminants from dry, granular, free flowing product streams in round gravity-fed vertical chutes and spouts. MPI’s RSDM offers an easy and economical solution for protecting processing equipment and providing greater product purity. It is an ideal product for sifter and screener discharge spouts eliminating the need for mounting transitions or flanges.

MPI Round Spout Drawer Magnet

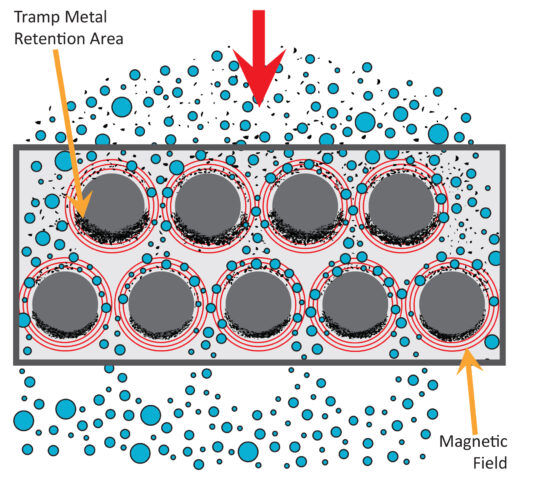

  • The product stream flows through one or two tiers (depending on model selection) of 1” diameter magnetic tubes designed to create an extremely effective magnetic circuit. The
    two row units have magnetic tubes staggered to prevent bridging or choking of the product stream and maximize magnetic filtration as product flows through the housing. Tramp metal containments move to the underside of the magnetic tubes eliminating tramp metal “wash off.” The front door panel with magnetic tubes attached can be quickly unlatched, removed and cleaned outside the product flow area.

  • MPI Difference

    Dust-tight stainless steel construction
    Sani-TIGHT Seal™ Gasket
    Type: Compression style “O-ring” cord gasket
    100% Positive seal, cannot be over-compressed
    Sanitary: Can be removed for wash-down, no adhesive required
    Powerful Rare Earth magnet material
    One or two rows of seam-welded 1” diameter magnet tubes

    Options

    Custom housing flange connections
    Custom alloy stainless steel construction
    Custom magnetic tube spacing
    Choice of magnet tube material:
    Ceramic 8 magnet material for less severe tramp metal applications
    Rare Earth magnet material for higher operating temperatures
    Hi-G material and Thin Wall designs for specialized
